Features
- For fine mechanics, model building, mould construction, toy manufacture, architects, model carpenters and fitters
- For cutting wood, non-ferrous metals, plastics, plexiglas, glass fibre reinforced sheets, foam and many other materials
- Stable construction because load bearing parts and plane milled table are made of die cast aluminum
- Angle stop with stop rail of aluminum and adjustable limit stop for manufacturing parts of equal length and the same angle
- Extendable table extension with integrated auxiliary stop
Product Description

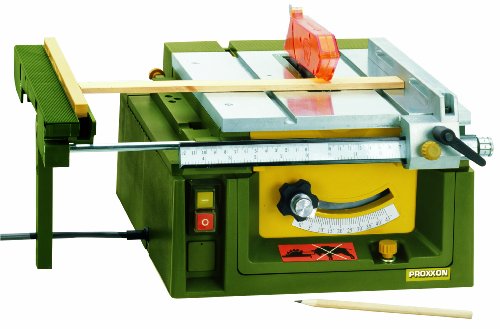

Perfectly straight cuts. For fine mechanics, model building, mould construction, toy manufacture, architects, model carpenters and fitters. For cutting wood, non-ferrous metals, plastics, Plexiglas, glass fibre reinforced sheets, foam and many other materials. Stable construction because load bearing parts and plane-milled table are made of die-cast aluminium. The micro-adjustable, precise and stable longitudinal stop provides decisive advantages: Corrections even smaller than 0.004" (1/10mm) can be made after coarse adjustment using an adjusting screw. The height is adjustable and 45° tiltable saw blade makes it possible to cut double mitres when used together with the angle stop. Low-noise drive using DC special motor with compound belt driver. Ball-bearinged saw blade shaft. Tungsten tipped saw blade Ø 3 9/64" (80mm) x 1/16" (1.6mm) x 13/32" (10mm) (24 T). Additional work piece pusher and non-slotted ABS sawing gap cover for tight tolerances between saw blade and table. Technical data: 110 - 120V AC. 60Hz. 7,000rpm. Mitre infinitely adjustable up to 45°. Table size 12" x 12" (300 x 300mm). Cutting depth 0.04 - 5/6" (1 - 22mm). Saw blades between 2 - 3 11/32" (50 - 85mm) can be used (with 13/32" (10mm) centre hole). Weight approx. 12 lb (6kg).
