 | Manufacturer: Bolton Lowest Price: Too Low to Display Sales Rank: 555,231 in Home Improvement |
Buying Options
Features

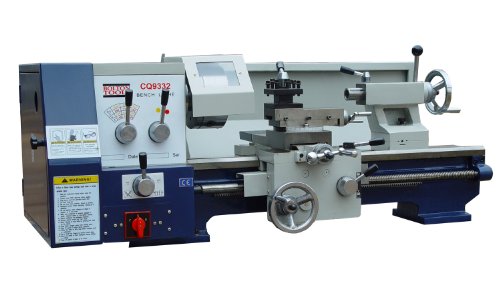

- Bolton Cq9332 Gear Driven Lathe, 12" Swing Over Bed , 23" Distance Between Centers, 1 1/2" Spindle Bore, Mt#3,12 Cross Travel and Compound Travel,9-48 Tpi,110v or 220v Capacity, 1 Hp, Optional Stand Available, 1 Year Warrantty
Product Description
Lathe Specifications: Swing over bed 320mm 12-3/5" Swing over carriage 200mm 7-7/8" Distance between centers 600mm 23-3/5" Lathe Chuck Diameter 170mm 6-7/10" Lathe Chuck Type 3 Jaw Self Centering Spindle taper MT#5 Spindle through bore 38mm 1-1/2" Spindle Speeds 12(60-1600 RPM) Metric threads 15 (0.5-4mm) Inch threads 23 (5-48 1/n") Longitudinal feed rates 0.1-1.50mm/r 0.004-0.059 in.per revolution Cross feed rates 0.022-0.3mm/r 0.0008-0.0118 in.per revolution Tailstock barrel Taper MT#3 Tailstock barrel travel 80mm 3-1/7" Electrical Specifications: Horsepower 750 1hp Motor Type A/C Phase Single or three phase Voltage 110V or 220V
